• Rear axle, 3.23
• Suspension Package, Magnetic Ride Control
• Keyless start, push button start
• Tow/haul mode selector, button located at end of shift lever
• Air cleaner, high-capacity
• Differential, heavy-duty locking rear
• Alternator, 170 amps
• Rear wheel drive
• Trailering equipment, heavy-duty includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and 2" trailering receiver
• Trailer brake controller, integrated
• GVWR, 7300 lbs. (3311 kg) (Not available on 4WD models.)
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Steering, power
• Powertrain grade braking
• Brakes, VAC power, 17" disc,/disc with Vehicle Stability Enhancement System 7700 lbs.
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Tools, mechanical jack and wheel wrench stored in rear quarter trim

• Wheels, 20" x 9" (50.8 cm x 22.9 cm) ultra bright machined aluminum
• Tires, P275/55R20 all-season, blackwall
• Wheel, full-size spare 17" (43.2 cm) steel
• Tire carrier, lockable outside spare winch-type mounted under frame at rear
• Tire, spare P265/70R17 all-season, blackwall
• Luggage rack side rails, roof-mounted, Black
• Moldings, bright bodyside
• Assist steps, Black with chrome strip
• Headlamps, projector beam, high intensity discharge
• Headlamps, IntelliBeam, automatic high beam on/off
• Fog lamps
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, body-color with integrated turn signal indicators and ground illumination.
• Windshield style, acoustic laminated glass
• Windshield, solar-absorbing
• Glass, deep-tinted
• Wipers, front rain-sensing, intermittent
• Wiper, rear
• Liftgate, power, hands free

• Audio system, 8" Diagonal Color Touch Screen Navigation with IntelliLink includes new text message alerts and Siri Eyes Free functionality through voice command, AM/FM with USB ports, auxiliary jack, Bluetooth® streaming audio for music and most phones, hands-free smartphone integration, voice-activated technology for radio and phone and an articulating screen with hidden storage. Includes 5 USB ports and 1 auxiliary jack (See "gmtotalconnect.com" for phone compatibility information.)
• Audio system feature, Bose Centerpoint Surround Sound premium 10-speaker system
• Audio system feature, CD player (Replaced by (U42) rear seat entertainment system when (U42) is ordered.)
• SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Radio, HD
• Antenna, integral in rear quarter glass
• Wireless charging (Not compatible with all phones. Compliant batteries include QI and PMA technologies. Reference Mobile devices manual to confirm what type of battery it uses. See "gmtotalconnect.com" for phone compatibility information.)
• Active Noise Cancellation

• Seats, front bucket with Perforated leather-appointed heated and cooled seat cushions, 12-way power driver and passenger seat includes 6-way power cushions, driver seat 2-position memory, 4-way power lumbar control and power recline
• Seats, second row bucket, power release
• Seats, third row 60/40 split-bench, power fold
• Seats, heated and cooled driver and front passenger seat cushions and seat backs with perforated leather-appointed seating
• Seats, heated second row, outboard positions
• Safety Alert Driver Seat
• Seat adjuster, front passenger 6-way power
• Console, floor with storage area, cup holders
• Cargo net
• Floor mats, color-keyed carpeted first and second row, removable
• Floor covering, color-keyed carpeting
• Steering column, power tilt and telescopic
• Steering wheel, heated, leather-wrapped
• Steering wheel controls, mounted audio and cruise controls and Driver Information Center controls
• Display, driver, 8" diagonal customizable driver display
• Windows, power all express down, front express up
• Door locks, power programmable with lockout protection
• Passive Entry System includes (AQQ) Remote Keyless Entry
• Remote vehicle start includes extended range Remote Keyless Entry
• Cruise control, electronic with set and resume speed (Not included when (Y66) Adaptive Cruise Control is ordered.)
• Pedals, power-adjustable for accelerator and brake
• Universal Home Remote includes garage door opener, programmable
• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers
• Defogger, rear-window electric
• Theft-deterrent system, electrical, unauthorized entry
• Power outlet, 110-volt, 1.1 Amp, 150 Watt
• Power outlets, 5 auxiliary, 12-volt includes outlets in the instrument panel, console, back of the console, 1 in 3rd row and 1 in the cargo area.
• Mirror, inside rearview auto-dimming
• Assist handles, all seats
• Lighting, interior with dome light driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Lighting, interior includes courtesy lighting with theater dimming, lighting for front and rear door handles, front and rear passenger footwells and door storage area
• OnStar Guidance plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Vehicle Diagnostics and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)
• OnStar with 4G LTE provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)
• OnStar Basic plan for 5 years including limited RemoteLink mobile app services, Vehicle Diagnostics and Dealer Maintenance Notification (Basic Plan available for 5 years from the date of vehicle delivery, and is transferable. Does not include Emergency, Security or Navigation services.)

• Brakes, 4-wheel antilock, 4-wheel disc
• Brakes, Hill Start-Assist
• StabiliTrak, stability control system with brake assist, includes traction control
• Daytime Running Lamps, with automatic exterior lamp control
• Air bags, frontal and side-impact for driver and front passenger driver inboard seat-mounted side-impact and head curtain side-impact for all rows in outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Passenger Sensing System sensor indicator inflatable restraint, front passenger/child presence detector (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats; lower anchors and top tethers located in all second row seating positions, top tethers located in third row seating positions
• Parking assist front and rear
• Rear Cross-Traffic Alert
• Forward Collision Alert
• Lane Keep Assist
• Rear Vision Camera
• Side Blind Zone Alert with Lane Change Alert
• Tire Pressure Monitoring System

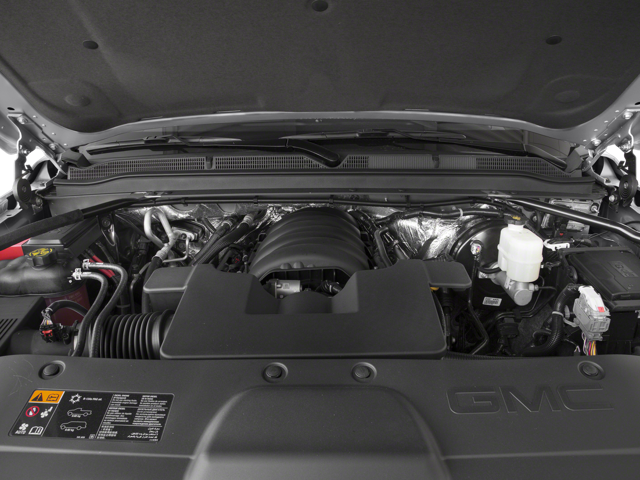

ENGINE, 6.2L ECOTEC3 V8

• with Active Fuel Management
• Direct Injection and Variable Valve Timing
• includes aluminum block construction (420 hp [313 kW] @ 5600 rpm
• 460 lb-ft of torque [624 N-m] @ 4100 rpm) (STD)

• Engine
• 6.2L EcoTec3 V8 with Active Fuel Management
• Direct Injection and Variable Valve Timing
• includes aluminum block construction (420 hp [313 kW] @ 5600 rpm
• 460 lb-ft of torque [624 N-m] @ 4100 rpm)
• Rear axle
• 3.23
• Suspension Package
• Magnetic Ride Control
• Keyless start
• push button start
• Tow/haul mode selector
• button located at end of shift lever
• Air cleaner
• high-capacity
• Differential
• heavy-duty locking rear
• Alternator
• 170 amps
• Rear wheel drive
• Trailering equipment
• heavy-duty includes trailering hitch platform
• 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and 2" trailering receiver
• Trailer brake controller
• integrated
• Cooling
• auxiliary external transmission oil cooler
• heavy-duty air-to-oil
• Cooling
• external engine oil cooler
• heavy-duty air-to-oil integral to driver side of radiator
• GVWR
• 7300 lbs. (3311 kg) (Not available on 4WD models.)
• Suspension
• front coil-over-shock with stabilizer bar
• Suspension
• rear multi-link with coil springs
• Steering
• power
• Powertrain grade braking
• Exhaust
• aluminized stainless-steel muffler and tailpipe
• Tools
• mechanical jack and wheel wrench stored in rear quarter trim
• Tire carrier
• lockable outside spare winch-type mounted under frame at rear
• Moldings
• bright bodyside
• Headlamps
• projector beam
• high intensity discharge
• Fog lamps
• Mirrors
• outside heated power-adjustable
• power-folding and driver-side auto-dimming
• body-color with integrated turn signal indicators and ground illumination.
• Windshield style
• acoustic laminated glass
• Windshield
• solar-absorbing
• Glass
• deep-tinted
• Wipers
• front rain-sensing
• intermittent
• Wiper
• rear
• Liftgate
• power
• hands free
• Audio system feature
• Bose Centerpoint Surround Sound premium 10-speaker system
• Radio
• HD
• Antenna
• integral in rear quarter glass
• Wireless charging (Not compatible with all phones. Compliant batteries include QI and PMA technologies. Reference Mobile devices manual to confirm what type of battery it uses. See "gmtotalconnect.com" for phone compatibility information.)
• Active noise cancellation
• Seats
• heated second row
• outboard positions
• Safety Alert Driver Seat
• Console
• floor with storage area
• cup holders
• Cargo net
• Floor covering
• color-keyed carpeting
• Steering column
• power tilt and telescopic
• Steering wheel
• heated
• leather-wrapped
• Display
• driver
• 8" diagonal customizable driver display
• Windows
• power all express down
• front express up
• Universal Home Remote includes garage door opener
• programmable
• Climate control
• tri-zone automatic with individual climate settings for driver
• right-front passenger and rear passengers
• Defogger
• rear-window electric
• Power outlet
• 110-volt
• 1.1 Amp
• 150 Watt
• Power outlets
• 5 auxiliary
• 12-volt includes outlets in the instrument panel
• console
• back of the console
• 1 in 3rd row and 1 in the cargo area.
• Mirror
• inside rearview auto-dimming
• Assist handles
• all seats
• Lighting
• interior with dome light driver- and passenger-side door switch with delayed entry feature
• cargo lights
• door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Lighting
• interior includes courtesy lighting with theater dimming
• lighting for front and rear door handles
• front and rear passenger footwells and door storage area
• Brakes
• Hill Start-Assist
• Daytime Running Lamps
• with automatic exterior lamp control
• Air bags
• frontal and side-impact for driver and front passenger driver inboard seat-mounted side-impact and head curtain side-impact for all rows in outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Passenger Sensing System sensor indicator inflatable restraint
• front passenger/child presence detector (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• LATCH system (Lower Anchors and Top tethers for Children)
• for child safety seats; lower anchors and top tethers located in all second row seating positions
• top tethers located in third row seating positions
• Parking assist front and rear
• Rear Cross-Traffic Alert
• Rear Vision Camera
• Side Blind Zone Alert with Lane Change Alert
• Tire pressure monitoring system

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3500
• Gross Axle Wt Rating - Rear (lbs): 4300
• Curb Weight - Front (lbs): 2874
• Curb Weight - Rear (lbs): 2875
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 810
• Suspension
• Suspension Type - Front: Coil-Over Shock
• Suspension Type - Rear: Multi-link
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.23
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 46.0
• Shock Absorber Diameter - Rear (mm): 46.0
• Stabilizer Bar Diameter - Front (in): 1.41
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 17.0 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 17.0 x - TBD -
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: RC4
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.8
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Exterior Dimensions
• Wheelbase (in): 130.00
• Length, Overall w/rear bumper (in): 224.30
• Width, Max w/o mirrors (in): 80.50
• Height, Overall (in): 74.40
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 34.13
• Ground Clearance, Front (in): 7.91
• Ground Clearance, Rear (in): 7.91
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 100.30
• Cargo Area Length @ Floor to Seat 2 (in): 63.60
• Cargo Area Length @ Floor to Seat 3 (in): 31.60
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): 34.92
• Cargo Volume to Seat 1 (ft³): 121.7
• Cargo Volume to Seat 2 (ft³): 76.7
• Cargo Volume to Seat 3 (ft³): 39.3
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.30
• Front Shoulder Room (in): 64.80
• Front Hip Room (in): 60.80
• Second Head Room (in): 39.10
• Second Leg Room (in): 39.70
• Second Shoulder Room (in): 65.10
• Second Hip Room (in): 60.30
• Third Head Room (in): 38.50
• Third Leg Room (in): 34.50
• Third Shoulder Room (in): 62.60
• Third Hip Room (in): 49.30
• Summary
• Vehicle Name: GMC Yukon XL
• Body Style: Sport Utility Vehicle
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.5
